QUARTZ ARENA pool liner kit

€9,832.46
Tax included
Ask a question (6)
Kits

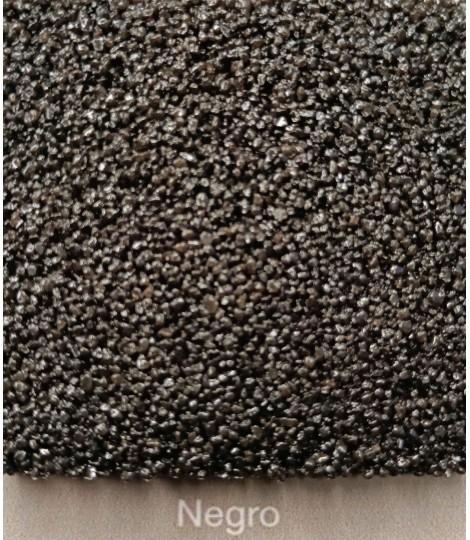

Colors Quartz sands
Quantity

FREE SHIPPING TO ALL SPAIN -Only for kits-

(Islands not included - consult)

Our Beach Feel System Kits for sand coating for beach-type swimming pools include all the necessary products for direct pressure waterproofing, sand and binder for the coating and polyurethane solvent for sealing the protection of the swimming pool.

VERY IMPORTANT: If the glass has humidity due to capillary action, or you want to protect it from this type of humidity, the application of the ECOPOX CEM PLUS 3C vapor barrier will be necessary

This product can be found at this link: https://microcementosonline.com/es/470-impermeabilizante-a-contrapresion-ecopox-cem-plus-3c-5834.html#/2-capacidad-5_kg or at the end of it page in "MIGHT ALSO BE INTERESTED"

The consumption of this product for 3 layers (recommended) is 1.5 Kg per m2

LIST OF PRODUCTS THAT MAKE UP THE KITS

Kit of 14 m2

units container Kg / Lt. products
one 1 Lt. F300
one 36 Kg. PAVIMER 2C RAPIDO
one 5 Kg . PAVEX PRIMER 2 C
one 0.100 Kg THICKNESS PACK PAVEX 5 KG
4 25 Kg . SNOW WHITE QUARTZ 0.8-1.2 mm
one 5 Kg . PAVIDUR 1 C
one 5 Kg. ORFAPOL PLUS
one 1 Lt. UNCOUPLING
  • Total weight
  • 80 Kg


28 m2 kit

units container Kg / Lt. products
two 1 Lt. F300
two 36 Kg. PAVIMER 2C RAPIDO WHITE
two 5 Kg . PAVEX PRIMER 2 C WHITE
two 0.100 Kg THICKNESS PACK PAVEX 5 KG
8 25 Kg . QUARTZ 0.8-1.2 mm
two 5 Kg . PAVIDUR 1 C
one 10 ORFAPOL PLUS
one 3,5 Lt. UNCOUPLING
  • Total weight
  • 308 Kg

Kit of 50 m2

units container Kg / Lt. products
one 5 Lt. F300
3 36 Kg. PAVIMER 2C RAPIDO WHITE
3 5 Kg . PAVEX PRIMER 2 C WHITE
3 0.100 Kg THICKNESS PACK PAVEX 5 KG
14 25 Kg . QUARTZ 0.8-1.2 mm
4 5 Kg . PAVIDUR 1 C
one 10 Kg. ORFAPOL PLUS
one 5 Kg . ORFAPOL PLUS
one 3,5 Lt. UNCOUPLING
  • Total weight
  • 515 Kg

100 m2 kit

units container Kg / Lt. products
two 5 Lt. F300
6 36 Kg. PAVIMER 2C RAPIDO WHITE
one 30 Kg . PAVEX PRIMER 2 C WHITE
one 0.100 Kg THICKNESS PACK PAVEX 5 KG
28 25 Kg . QUARTZ 0.8-1.2 mm
two 5 Kg . PAVIDUR 1 C
one 25 Kg . PAVIDUR 1 C
3 10 Kg. ORFAPOL PLUS
two 3,5 Lt. UNCOUPLING
  • Total weight
  • 1030 Kg

Kit of 140 m2

units container Kg / Lt. products
one 20 Lt. F300
9 36 Kg. PAVIMER 2C RAPIDO WHITE
one 30 Kg . PAVEX PRIMER 2 C WHITE
3 5 Kg . PAVEX PRIMER 2 C WHITE
one 0.300 Kg THICKNESS PACK PAVEX 30 KG
3 0.100 Kg THICKNESS PACK PAVEX 5 KG
40 25 Kg . QUARTZ 0.8-1.2 mm
two 25 Kg . PAVIDUR 1 C
4 10 Kg. ORFAPOL PLUS
3 3,5 Lt. UNCOUPLING
  • Total weight
  • 1500 Kg
SIM00287

Specific References

New product

Download

Data sheet

Download (1)

Guide

Application guide with products and consumptions, as well as all the steps to follow for a correct application of our Beach Feel sand pool lining system

Download (650.83k)

Arena Pool Catalogs

In this Catalog we collect different models of pools from Arena Beach Feel

Download (3.81M)



Be the first to write your review !

From Semen | 2023-06-07 18:13:37

Hi. I'd like like to buy a 28 m2 kit. I plan to build a concrete pool 6x3,5m (deep zone) + kids area.

Questions.
1. Is 28m2 enough for such a project?
2. We have 3 months of winter with minus celsium temperatures (up to -10/-15). Is a Beach Feel System strong enough to survive during this period? How many years? Should i empty pool in winter or it can stay feeled with water?
3. Can I use regular pool chemicals like for PVC foil or are there restrictions?
4. How much does shipping to Slovakia cost?

Thank you.

administrator

Hello, we cannot guarantee the resistance of our system at the temperatures indicated to us.

All the best

From Bob Emmerson | 2022-05-10 09:05:42

Dear Sirs,
I would like to buy a "beach feel sand pools kit" for 28 square meters for the pool of my house. Looks a fantastic product.
Before I but just have two questions:
1) can we obtain a properly aplication and installation of the products following on line instruccions?
2) I travel often to Spain. If I pass by your company, do you think I could have some didactic and practical training and in case would it be for free or does it cost som money?
Thank you so much
Bob Emmerson

administrator

Good morning, we have many clients who, through the application guide and the published videos, have carried out the application of the sand without major difficulties.
In the factory we only do training for professional companies.

All the best

From Mark Stretton | 2021-10-12 08:11:25

Hi, I have an 8x4m x 1.5 deep pool that's tiled. I want to remove the tiles and replace with this resin alternative. Is that a possibility? How many kits would I need for that size pool?
Kind regards

Mark

administrator

Hello, according to the calculation with the indicated measurements plus a finish of 0.50 cm in the perimeter of the pool, I would need 80m2

We will send you an evaluation and system information to your email

All the best

From Markus | 2020-10-29 23:43:57

I would like to coat an armored EPDM foil with it.
This means the following structure.
1. earth modelling of the pool
2. lay out fleece
3. lay out EPDM foil
4. fill the membrane fleece or grid and on top of it about 4-5cm (quite thin) of concrete to protect the foil and give the pool stability. But the concrete is not waterproof and there are cracks and water runs behind the concrete. I do not have the possibility of using shotcrete and steel.

Example
https://youtu.be/not7xMj7IMM

Question 1:
What could another construction look like now?

Should you seal it completely or is that even possible without cracks and then do your further construction on top of it, or would that crack and become unattractive because of the thin concrete layer?

Question 2:
What do you think of this structure without concrete?
https://youtu.be/6Kg_zMuE8Kc

Question 3:
I would like to find a superstructure that can be produced as a DIY version without 10cm shotcrete and iron reinforcement. Either with the knowledge that the layered construction is not waterproof up to the EPDM foil or with a material that is very flexible to bridge cracks.

Translated with www.DeepL.com/Translator (free version)

administrator

Good morning, after making the 4--5 cm of concrete that you tell us, you should give it a 2-3 cm layer of a repairing mortar with fibers https://microcementosonline.com/es/mortero-reparador-de-0 -a-60-mm.html # / 7-color-gris, to avoid holes and give more consistency to the structure, later on, you could apply the Beach Feel coating system consisting of 3 roll-on layers of PAVIMPER elastic waterproofing mortar 2C, PAVEX PRIMER 2C epoxy wall primer, coating with SAND + PAVIDUR 1 C epoxy binder and finally protective sealing with high resistance polyurethane resin ORFAPOL PLUS.

If you want us to send you a written application guide, you can contact us through the watshapp 0034633599222 or our email: info@microcementosonline.com

a greeting

From Francisco Arredond | 2020-10-24 04:40:01

Necesito saber si hacen envíos a EEUU
Revestimiento de arena lista para aplicarla en piscina de aproximadamente 4 metros por 6 metros. Costo material y envío a Florida EU
Gracias y espero su respuesta

administrator

Buenos días, si hacemos envío, pero para ello debe ponerse en contacto con nuestro responsable de exportación para que le haga cotización de producto y envió al telefóno: 0034650341961

Un saludo

From Tine | 2020-07-03 13:25:24

Are the Beach fell pool kits also usable for covering the EPDM pool? No concrete just a foil, like in a pond?
What would be the price of shipping the kit for 100 square meters to Slovenia?

Thank you!

administrator

Hello, our system is not intended to be applied on an EPDM sheet since it is a 4 mm coating and therefore needs a concrete structure.
Our company is not in favor of making pools without a concrete structure since with 4 cm of sand bonded with resins the stability of the pool cannot be affected, in many cases as a consequence of some movement or settlement of earth, it breaks the entire structure.

a greeting
