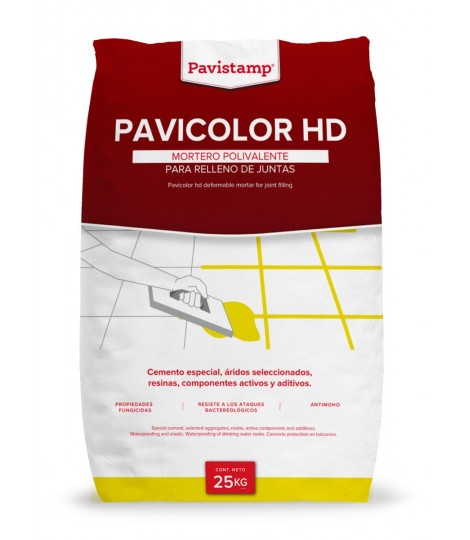

PAVICOLOR HD

Multipurpose mortar for joint filling (1 to 25 mm)
- Does not contain any type of biocide
- Anti-mold
- Does not stain
- Resists efflorescence
- Excellent adherence
- High mechanical chemical resistance
- Freeze-thaw resistance

EXECUTION CONDITIONS /
- The joints between tiles must be clean, dry and free of dust.
- An excess of water would hinder the final performance of the mortar.
- Grouting must be carried out after a minimum of 24 - 48 hours after fixing the ceramic.
- In applications on porous or absorbent surfaces, treat the tiles with Protector
PAVISTAMP, before grouting to avoid staining the pieces.
- Suitable for use with a refillable pistol.

HOW TO USE/
Knead Pavicolor HD manually or with an electric mixer until a homogeneous and lump-free mass is obtained.
25 kg bag: 5 - 5.5 liters of water.
5 kg bag: 1 - 1.1 liters of water.
Let stand for 5 minutes.
Fill the joints between tiles, wait 30-60 minutes to remove the remains of the product.
Suitable for use with a refillable pistol.

Clean with a damp sponge and rinse with clean water until the final finish is obtained.

PRESENTATION /
5 kg bag (in 20 kg boxes)
Pallets of 18 boxes (360 kg)
* 20 kg containers. Consult
COLORS /
20 colors
* Other colors on demand
PERFORMANCE /
Between 0.4 and 0.8 kg / m2

* These consumptions can vary depending on the thickness and width of the joints, as well as the dimensions of the material
ceramic.

OBSERVATIONS /
- Fungicidal properties.
- Resists bacteriological attacks.
- Raincoat.
- Does not stain
EMPLOYMENT CHARACTERISTICS /
- Rest time after kneading: 5
minutes
- Maximum cleaning time: 30-60 minutes
- Life of the dough: 60 minutes
- Dry to the touch: 1-2 hours
- Commissioning: 3-4 days
- Total setting:> 7 days
* These times can vary considerably depending on the ambient temperature.
BENEFITS /
- Powder density: 940 kg / m3
- Mixing water: 22%
- Density of the dough:
- Water absorption: <0.1 kg (m2 min 0.5)
- Retraction: 0.01 mm / m (UNE 83831 EX)
-
Compressive strength:> 21 Mpa
-
Flexural strength:> 5 Mpa
* All the information described has been obtained from standard tests and may vary depending on the conditions of installation.

CHEMICAL RESISTANCE TABLE /
PRODUCT CLASSIFICATION
Chlorine 15 g / m3
(10 times treatment
superchlorination) 30 days continuous immersion) 3
Chlorine 3 g / m3
(5 times treatment
superchlorination) 30 days continuous immersion) 3
Hydrochloric Acid 16.5% 10 days immersion
continuous 3
Sulfuric Acid 15% 10 days immersion
continuous 3
Sodium Chloride saturated solution 10 days
continuous immersion 3
Caustic soda 15% continuous immersion 10
days 3
Food agents (temporary contact 30 minutes)
Vinegar 2
Citrus 3
Wine 3
Beer 3
Butter 3
Coffee 3
Yogurt 3 EXECUTION CONDITIONS /
- The joints between tiles must be clean, dry and
dust free.
- An excess of water would hinder the final performance of the
mortar.
- Grouting must be done after a minimum of
24 - 48 hours after fixing the ceramic.
- In applications on porous or absorbent surfaces,
treat the tiles with Protector
PAVISTAMP, before grouting to avoid
pieces are stained.
- Suitable for use with a refillable pistol.

HOW TO USE/
Kneading Pavicolor HD manually or with
electric mixer until you get a
homogeneous and lump-free mass.
25 kg bag: 5 - 5.5 liters of water.
5 kg bag: 1 - 1.1 liters of water.
Let stand for 5 minutes.
Fill the joints between tiles,
wait 30-60 minutes to remove
the remains of the product.
Suitable for use with a pistol
refillable.
PRODUCT
Mortar

CONSERVATION /
In 25 kg bags, 12 months from the date of manufacture, in the original closed container and sheltered from the elements.
