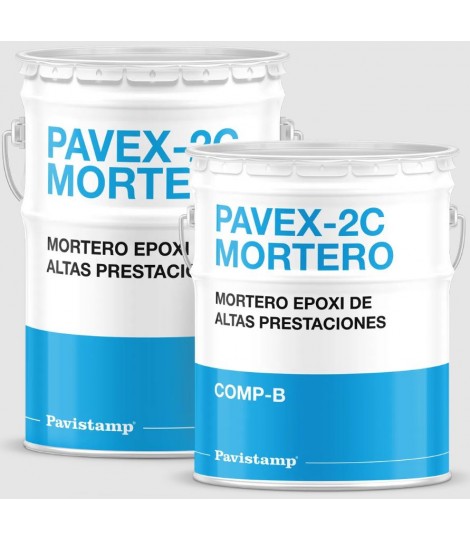

Pavex-2C epoxy mortar

Characteristics of the Pavex-2C epoxy mortar.

Pavex-2C mortar is free of solvents and 100% solids compound. It can be applied in both chemical and food installations, supporting continuous immersions in industrial and marine waters. It also protects pavements subjected to intense traffic from erosion.

• Withstands pressures of up to 5,500 kg per m2.
• Good chemical resistance.
• Good anchorage on concrete.
• Excellent resistance to abrasion.
• High resistance to compression.
• Extreme hardness superior to that of any concrete.
• Packaging: 5kg and 30kg.
• Colors:
  • Resin A + B: amber.
  • Arid: Natural color.
  • Consult other colors.
• Consumption: 2.4 Kg / m2 per layer 1 mm. Thickness.
• Conservation: 12 months from the date of manufacture, in original closed container (20 ºC) and sheltered from the elements.

Characteristics of use of the Pavex-2C epoxy mortar.

• Once components A and B have been mixed, aggregate of selected grain size will be added in a ratio of 8 parts of aggregate: 1 part of Resin A + B.
• Pot life: 15 minutes.
• Dried at 20ºC and 60% relative humidity.
  • Dry to touch: 60 min.
  • Total drying: 8-12 hours.
  • Total polymerization: 7 days.
• Final look: Mortar

Conditions of execution of the Pavex-2C epoxy mortar.

• On a completely dry and moisture-free surface, clean and free of fats and other materials.
• Do not apply with relative humidity higher than 85% and ambient temperature lower than 15ºC.
• Maximum humidity of the support 4%.
• Apply with good air renewal, 100% solids free of solvent.
• On a completely set cement base (≥28 days).
• On smooth, non-absorbent surfaces, open the pore by mechanical means (abrasive blasting, frosting, abrasive disc) accompanied by deep aspiration.
• Increases hardness and resistance against abrasion.

How to use the Pavex-2C epoxy mortar.

• Mix components A + B with a mixer at low speed until perfect homogenization is obtained.
• Add the selected grain size aggregate in the proportion of 1 part Resin (A + B) + (up to) 8/9 parts (depending on grain size) of the selected aggregate.
• Shake the resulting mixture until a homogeneous mass is obtained (Possibility of mixing with concrete mixer).
• Pour the resulting mass on the ground or in the area to be repaired (previously primed with Pavex 2C Primer) and spread with the help of a trowel and / or helicopter to the desired height. Let dry for at least 8 hours.
• Once the dry mortar admits any type of sealing: Pavex-2C color, Orfapol 50, Paviplast epoxy ...

Recommendations for the application of the Pavex-2C epoxy mortar.

• Application temperatures: 10-30 ºC.
• Always respect the same dosage.
• Do not apply on wet floors or subject to possible humidity lifts.
• Do not add any additive to the mix.
• Avoid splashing the product in the eyes and skin.

Resistance table of the Pavex-2C epoxy mortar.

• Dry heat temperature: 130 ºC
• Humid heat temperature: 75 ºC
• Salt Fog Resistance: More than 1000 h.
• Diluted acids Resistance: More than 1 year
• Marine environment Resistance: More than 3 years
• Industrial environment Resistance: More than 3 years
• Water immersion Resistance: Superior 5 years
• Saltwater immersion Resistance: More than 5 years
• Resistant to: -20ºC
